  • Fig-7046

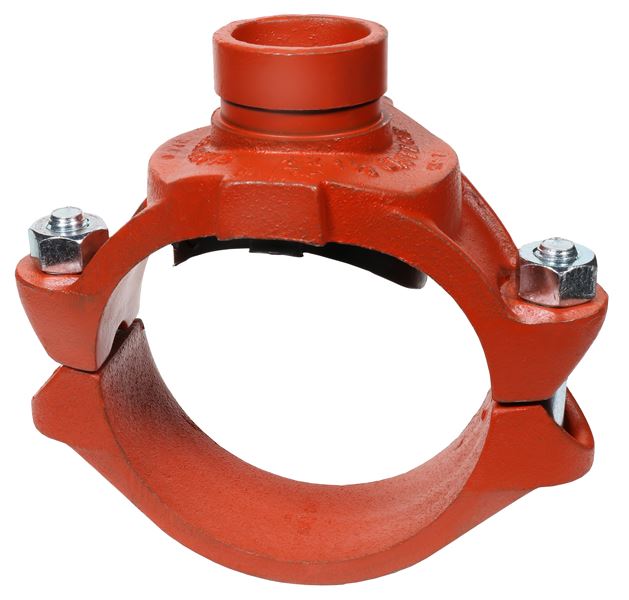

The Gruvlok Clamp-T provides a quick and easy outlet at any location along the pipe. A hole drilled or cut in the pipe to receive the locating collar of the Clamp-T is all that is required. The full, smooth outlet area provides for optimum flow characteristics.
The Clamp-T housing is specially engineered to conform to the pipe O.D. and the Clamp-T gasket providing a leak-tight reliable seal in both positive pressure and vacuum conditions. The maximum working pressure for all sizes is 500 PSI (34.5 bar) when assembled on standard wall steel pipe.
The Gruvlok Clamp-T provides for a branch or cross connection in light wall or standard wall steel pipe.
Clamp-T cross connections are available in most sizes allowing greater versatility in piping design.
1 - 25 of 100 | Results Per Page | View | Unit of Measure
1 2 3 4
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Nominal Size (in)

Gasket Material

Coatings

Pipe Outside Diameter (in)

Branch Outlet Diameter (in)

Item #

BIM

Nominal Size

Gasket

Coatings

Weight

N/A Revit Icon (for items table) N/A 2 1/2 x 1 1/4 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 3.4 lb
N/A Revit Icon (for items table) N/A 2 1/2 x 1 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 3.4 lb
N/A Revit Icon (for items table) N/A 3 x 1 1/4 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 3.4 lb
N/A Revit Icon (for items table) N/A 3 x 1 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 4.4 lb
N/A Revit Icon (for items table) N/A 3 x 2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 4.6 lb
N/A Revit Icon (for items table) N/A 4 x 1 1/4 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 4.2 lb
N/A Revit Icon (for items table) N/A 4 x 1 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 4.30 lb
N/A Revit Icon (for items table) N/A 4 x 2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 4.6 lb
N/A Revit Icon (for items table) N/A 4 x 2 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 5 lb
N/A Revit Icon (for items table) N/A 4 x 3 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 5.6 lb
N/A Revit Icon (for items table) N/A 5 x 1 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 5.6 lb
N/A Revit Icon (for items table) N/A 5 x 2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 5.5 lb
N/A Revit Icon (for items table) N/A 5 x 2 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 5.8 lb
N/A Revit Icon (for items table) N/A 5 x 3 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 7.1 lb
N/A Revit Icon (for items table) N/A 6 x 1 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 7.2 lb
N/A Revit Icon (for items table) N/A 6 x 2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 7.8 lb
N/A Revit Icon (for items table) N/A 6 x 2 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 7.6 lb
N/A Revit Icon (for items table) N/A 6 x 3 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 8.0 lb
N/A Revit Icon (for items table) N/A 6 x 4 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 10.40 lb
N/A Revit Icon (for items table) N/A 8 x 2 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 10.6 lb
N/A Revit Icon (for items table) N/A 8 x 3 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 11.5 lb
N/A Revit Icon (for items table) N/A 8 x 4 in N/A Grade “E” EPDM N/A Rust inhibiting paint Color: ORANGE N/A 16.2 lb
N/A Revit Icon (for items table) N/A 5 x 2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint Color: ORANGE N/A 5.5 lb
N/A Revit Icon (for items table) N/A 5 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint Color: ORANGE N/A 5.8 lb
N/A Revit Icon (for items table) N/A 5 x 3 in N/A Grade “T” Nitrile N/A Rust inhibiting paint Color: ORANGE N/A 7.1 lb
