  • Fig-7049

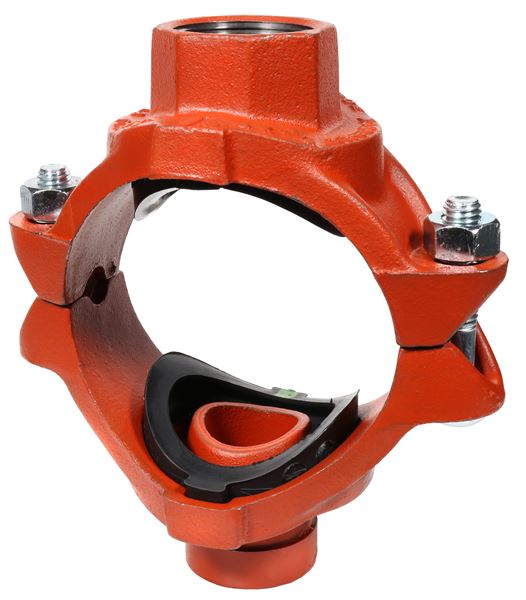

The Gruvlok Clamp-T provides a branch or cross connection in light wall or standard wall steel pipe.
The Fig. 7045 Clamp-T female pipe thread branch is available with NPT or ISO 7/1 connection and the Fig. 7046 Clamp-T has grooved-end branch connection.
Clamp-T cross connections are available allowing greater versatility in piping design.
NOTE: 2 1⁄2" x 1 1/4" Figure 7046 cannot be used in cross configuration.
1 - 25 of 220 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Nominal Size (in)

Gasket Material

Coatings

Pipe Outside Diameter (in)

Branch Outlet Diameter1 (in)

Branch Outlet Diameter2 (in)

Item #

BIM

Nominal Size

Gasket

Coatings

Weight

N/A Revit Icon (for items table) N/A 4 x 1 1/2 x 1 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint – Color: ORANGE N/A 5.1 lb
N/A Revit Icon (for items table) N/A 4 x 1 1/2 x 1 1/4 in N/A Grade “E” EPDM N/A Rust inhibiting paint – Color: ORANGE N/A 6.5 lb
N/A Revit Icon (for items table) N/A 4 x 1 1/4 x 1 1/4 in N/A Grade “E” EPDM N/A Rust inhibiting paint – Color: ORANGE N/A 6.3 lb
N/A Revit Icon (for items table) N/A 2 1/2 x 1 1/2 x 1 1/2 in N/A Grade “E” EPDM N/A Rust inhibiting paint – Color: ORANGE N/A 4.8 lb
N/A Revit Icon (for items table) N/A 5 x 2 1/2 x 1 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 5 x 2 1/2 x 2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 5 x 2 1/2 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 5 x 3 x 1 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 5 x 3 x 2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 5 x 3 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 5 x 3 x 3 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 1 1/2 x 1 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 2 x 1 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 2 x 2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 2 1/2 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 3 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 3 x 3 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 4 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 4 x 3 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 6 x 4 x 4 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 8 x 2 1/2 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 8 x 3 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 8 x 3 x 3 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 8 x 4 x 2 1/2 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
N/A Revit Icon (for items table) N/A 8 x 4 x 3 in N/A Grade “T” Nitrile N/A Rust inhibiting paint – Color: ORANGE N/A 0.01 lb
