  • 754

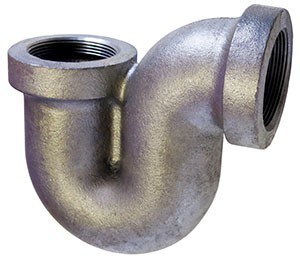

Anvil drainage fittings have sufficient sweep to allow free unobstructed flow. They are made with a shoulder of the same diameter as the inside of the pipe, in accordance with ASME B16.12, Type 1. Thus, continuous passage is created when the pipe is screwed to the shoulder, leaving no place for solid matter to collect and clog in the pipe.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

BIM

Coatings

Weight

N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Black N/A 3.87 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Black N/A 6.25 lb
