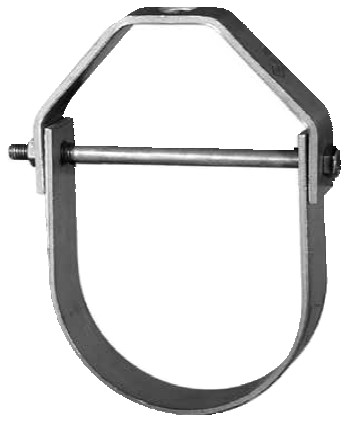

  • Fig--260---Adjustable-Clevis-Hanger
We have Revit content for Hangers. Please select a specific size Hanger to get the corresponding detailed Revit assembly file. The RFA can be downloaded by scrolling to the Downloads panel and clicking the second link at this item level.

The Revit assembly file cannot be downloaded using the MultiCAD functionality.
1 - 25 of 105 | Results Per Page | View | Unit of Measure
1 2 3 4 5
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Finish

Pipe Size (in)

Item #

CAD

Finish

Maximum Temperature

Max Load

Pipe Size

Rod Size A

Weight

N/A CAD Icon (for items table) N/A Plain N/A 650 ºF N/A 610 lb N/A 1/2 in N/A 3/8 in N/A 0.34 lb
N/A CAD Icon (for items table) N/A Plain N/A 650 ºF N/A 610 lb N/A 1/2 in N/A 3/8 in N/A 0.31 lb
N/A CAD Icon (for items table) N/A Galvanized N/A 0 ºF N/A 610 lb N/A 1/2 in N/A 3/8 in N/A 0.31 lb
N/A CAD Icon (for items table) N/A Stainless Steel N/A 0 ºF N/A 610 lb N/A 1/2 in N/A 3/8 in N/A 0.30 lb
N/A CAD Icon (for items table) N/A Primed N/A 650 ºF N/A 610 lb N/A 1/2 in N/A 3/8 in N/A 0.31 lb
N/A CAD Icon (for items table) N/A Epoxy Coated N/A 450 ºF N/A 610 lb N/A 1/2 in N/A 3/8 in N/A 0.34 lb
N/A CAD Icon (for items table) N/A Epoxy Coated N/A 450 ºF N/A 610 lb N/A 3/4 in N/A 3/8 in N/A 0.34 lb
N/A CAD Icon (for items table) N/A Plain N/A 650 ºF N/A 730 lb N/A 1 in N/A 3/8 in N/A 0.37 lb
N/A CAD Icon (for items table) N/A Galvanized N/A 0 ºF N/A 730 lb N/A 1 in N/A 3/8 in N/A 0.37 lb
N/A CAD Icon (for items table) N/A Stainless Steel N/A 0 ºF N/A 730 lb N/A 1 in N/A 3/8 in N/A 0.35 lb
N/A CAD Icon (for items table) N/A Primed N/A 650 ºF N/A 730 lb N/A 1 in N/A 3/8 in N/A 0.36 lb
N/A CAD Icon (for items table) N/A Epoxy Coated N/A 450 ºF N/A 730 lb N/A 1 in N/A 3/8 in N/A 0.35 lb
N/A CAD Icon (for items table) N/A Plain N/A 650 ºF N/A 730 lb N/A 1-1/4 in N/A 3/8 in N/A 0.39 lb
N/A CAD Icon (for items table) N/A Galvanized N/A 0 ºF N/A 730 lb N/A 1-1/4 in N/A 3/8 in N/A 0.39 lb
N/A CAD Icon (for items table) N/A Stainless Steel N/A 0 ºF N/A 730 lb N/A 1-1/4 in N/A 3/8 in N/A 0.4 lb
N/A CAD Icon (for items table) N/A Primed N/A 650 ºF N/A 730 lb N/A 1-1/4 in N/A 3/8 in N/A 0.39 lb
N/A CAD Icon (for items table) N/A Epoxy Coated N/A 450 ºF N/A 730 lb N/A 1-1/4 in N/A 3/8 in N/A 0.4 lb
N/A CAD Icon (for items table) N/A Plain N/A 650 ºF N/A 730 lb N/A 1-1/2 in N/A 3/8 in N/A 0.44 lb
N/A CAD Icon (for items table) N/A Galvanized N/A 0 ºF N/A 730 lb N/A 1-1/2 in N/A 3/8 in N/A 0.44 lb
N/A CAD Icon (for items table) N/A Stainless Steel N/A 0 ºF N/A 730 lb N/A 1-1/2 in N/A 3/8 in N/A 0.45 lb
N/A CAD Icon (for items table) N/A Primed N/A 650 ºF N/A 730 lb N/A 1-1/2 in N/A 3/8 in N/A 0.43 lb
N/A CAD Icon (for items table) N/A Epoxy Coated N/A 450 ºF N/A 730 lb N/A 1-1/2 in N/A 3/8 in N/A 0.45 lb
N/A CAD Icon (for items table) N/A Plain N/A 650 ºF N/A 730 lb N/A 2 in N/A 3/8 in N/A 0.5 lb
N/A CAD Icon (for items table) N/A Galvanized N/A 0 ºF N/A 730 lb N/A 2 in N/A 3/8 in N/A 0.5 lb
N/A CAD Icon (for items table) N/A Stainless Steel N/A 0 ºF N/A 730 lb N/A 2 in N/A 3/8 in N/A 0.5 lb
