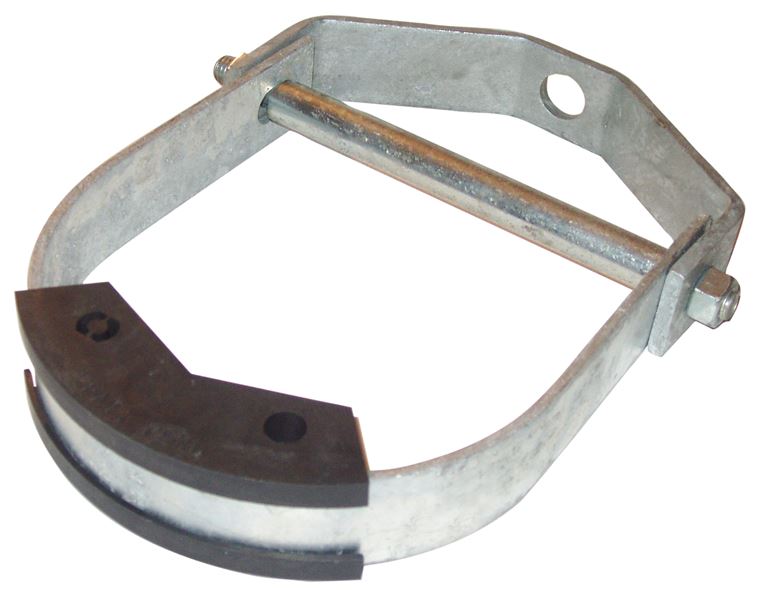

  • Fig-260ISS
We have Revit content for Hangers. Please select a specific size Hanger to get the corresponding detailed Revit assembly file. The RFA can be downloaded by scrolling to the Downloads panel and clicking the second link at this item level.

The Revit assembly file cannot be downloaded using the MultiCAD functionality.
1 - 25 of 37 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Size

Rod Size

Finish

Item #

CAD

Size

Rod Size

Finish

Max Load

Weight

N/A CAD Icon (for items table) N/A 2 N/A 3/8 N/A Plain N/A 550 lb N/A 0.73 lb
N/A CAD Icon (for items table) N/A 2 N/A 3/8 N/A Galvanized N/A 550 lb N/A 0.73 lb
N/A CAD Icon (for items table) N/A 2 N/A 3/8 N/A Hot-Dip Galvanized N/A 550 lb N/A 0.73 lb
N/A CAD Icon (for items table) N/A 3 N/A 1/2 N/A Plain N/A 550 lb N/A 1.32 lb
N/A CAD Icon (for items table) N/A 3 N/A 1/2 N/A Galvanized N/A 550 lb N/A 1.32 lb
N/A CAD Icon (for items table) N/A 3 N/A 1/2 N/A Hot-Dip Galvanized N/A 550 lb N/A 1.32 lb
N/A CAD Icon (for items table) N/A 3 N/A 1/2 N/A Plastic N/A 550 lb N/A 1.32 lb
N/A CAD Icon (for items table) N/A 4 N/A 5/8 N/A Plain N/A 550 lb N/A 1.83 lb
N/A CAD Icon (for items table) N/A 4 N/A 5/8 N/A Galvanized N/A 550 lb N/A 1.83 lb
N/A CAD Icon (for items table) N/A 4 N/A 5/8 N/A Hot-Dip Galvanized N/A 550 lb N/A 1.83 lb
N/A CAD Icon (for items table) N/A 4 N/A 5/8 N/A Plastic N/A 550 lb N/A 1.83 lb
N/A CAD Icon (for items table) N/A 5 N/A 5/8 N/A Plain N/A 750 lb N/A 2.44 lb
N/A CAD Icon (for items table) N/A 5 N/A 5/8 N/A Galvanized N/A 750 lb N/A 2.44 lb
N/A CAD Icon (for items table) N/A 5 N/A 5/8 N/A Hot-Dip Galvanized N/A 750 lb N/A 2.44 lb
N/A CAD Icon (for items table) N/A 5 N/A 5/8 N/A Plastic N/A 750 lb N/A 2.44 lb
N/A CAD Icon (for items table) N/A 6 N/A 3/4 N/A Plain N/A 750 lb N/A 3.81 lb
N/A CAD Icon (for items table) N/A 6 N/A 3/4 N/A Galvanized N/A 750 lb N/A 3.81 lb
N/A CAD Icon (for items table) N/A 6 N/A 3/4 N/A Hot-Dip Galvanized N/A 750 lb N/A 3.81 lb
N/A CAD Icon (for items table) N/A 6 N/A 3/4 N/A Plastic N/A 750 lb N/A 3.81 lb
N/A CAD Icon (for items table) N/A 8 N/A 3/4 N/A Plain N/A 1100 lb N/A 5.6 lb
N/A CAD Icon (for items table) N/A 8 N/A 3/4 N/A Galvanized N/A 1100 lb N/A 5.6 lb
N/A CAD Icon (for items table) N/A 8 N/A 3/4 N/A Hot-Dip Galvanized N/A 1100 lb N/A 5.6 lb
N/A CAD Icon (for items table) N/A 8 N/A 3/4 N/A Plastic N/A 1100 lb N/A 5.6 lb
N/A CAD Icon (for items table) N/A 10 N/A 7/8 N/A Plain N/A 1100 lb N/A 9.73 lb
N/A CAD Icon (for items table) N/A 10 N/A 7/8 N/A Galvanized N/A 1100 lb N/A 9.73 lb
