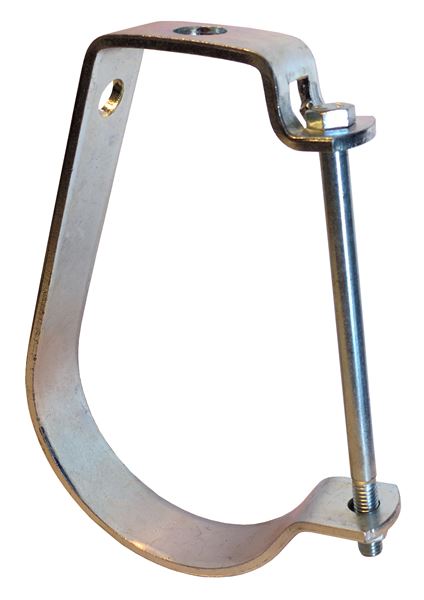

  • Fig-67


We have Revit content for Hangers. Please select a specific size Hanger to get the corresponding detailed Revit assembly file. The RFA can be downloaded by scrolling to the Downloads panel and clicking the second link at this item level.

The Revit assembly file cannot be downloaded using the MultiCAD functionality.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

Pipe Size

Load Rating

Rod Size

Bolt Size

Weight

N/A CAD Icon (for items table) N/A 1/2 N/A 400 lbf N/A 3/8 N/A 1/4 N/A 0.21 lb
N/A CAD Icon (for items table) N/A 3/4 N/A 400 lbf N/A 3/8 N/A 1/4 N/A 0.22 lb
N/A CAD Icon (for items table) N/A 1 N/A 400 lbf N/A 3/8 N/A 1/4 N/A 0.25 lb
N/A CAD Icon (for items table) N/A 1 1/4 N/A 400 lbf N/A 3/8 N/A 1/4 N/A 0.27 lb
N/A CAD Icon (for items table) N/A 1 1/2 N/A 400 lbf N/A 3/8 N/A 1/4 N/A 0.29 lb
N/A CAD Icon (for items table) N/A 2 N/A 400 lbf N/A 3/8 N/A 1/4 N/A 0.31 lb
N/A CAD Icon (for items table) N/A 2 1/2 N/A 500 lbf N/A 1/2 N/A 3/8 N/A 0.71 lb
N/A CAD Icon (for items table) N/A 3 N/A 500 lbf N/A 1/2 N/A 3/8 N/A 0.78 lb
N/A CAD Icon (for items table) N/A 4 N/A 550 lbf N/A 5/8 N/A 3/8 N/A 1.39 lb
N/A CAD Icon (for items table) N/A 5 N/A 550 lbf N/A 5/8 N/A 3/8 N/A 1.66 lb
N/A CAD Icon (for items table) N/A 6 N/A 600 lbf N/A 3/4 N/A 3/8 N/A 2.26 lb
