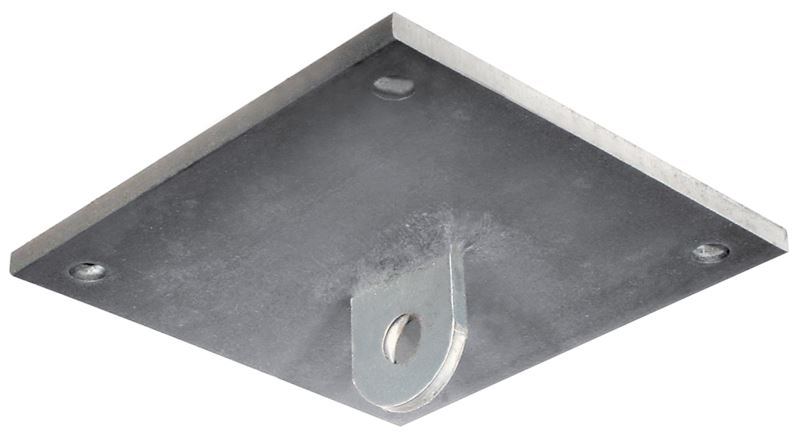

  • Fig-47
Service: Structural attachment to concrete ceiling lug is used in conjunction with Fig. 299 forged steel clevis and anchors of sufficient strength to hold the desired load.
Ordering: Specify rod size, figure number, name and finish.

We have Revit content for Hangers. Please select a specific size Hanger to get the corresponding detailed Revit assembly file. The RFA can be downloaded by scrolling to the Downloads panel and clicking the second link at this item level.

The Revit assembly file cannot be downloaded using the MultiCAD functionality.
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

Rod Size

Finish

Max Load

Weight

N/A CAD Icon (for items table) N/A 1/2 N/A Plain N/A 1,350 lb N/A 11.1 lb
N/A CAD Icon (for items table) N/A 1/2 N/A Hot-Dip Galvanized N/A 1,350 lb N/A 11.1 lb
N/A CAD Icon (for items table) N/A 5/8 N/A Plain N/A 2,160 lb N/A 14.6 lb
N/A CAD Icon (for items table) N/A 5/8 N/A Hot-Dip Galvanized N/A 2,160 lb N/A 14.6 lb
N/A CAD Icon (for items table) N/A 3/4 N/A Plain N/A 3,230 lb N/A 14.8 lb
N/A CAD Icon (for items table) N/A 3/4 N/A Hot-Dip Galvanized N/A 3,230 lb N/A 14.8 lb
N/A CAD Icon (for items table) N/A 7/8 N/A Plain N/A 4,480 lb N/A 22 lb
N/A CAD Icon (for items table) N/A 7/8 N/A Hot-Dip Galvanized N/A 4,480 lb N/A 22 lb
N/A CAD Icon (for items table) N/A 1 N/A Plain N/A 5,900 lb N/A 31.90 lb
N/A CAD Icon (for items table) N/A 1 N/A Hot-Dip Galvanized N/A 5,900 lb N/A 31.90 lb
N/A CAD Icon (for items table) N/A 1 1/4 N/A Plain N/A 9,500 lb N/A 43.8 lb
N/A CAD Icon (for items table) N/A 1 1/4 N/A Hot-Dip Galvanized N/A 9,500 lb N/A 43.8 lb
N/A CAD Icon (for items table) N/A 1 1/2 N/A Plain N/A 13,800 lb N/A 45.6 lb
N/A CAD Icon (for items table) N/A 1 1/2 N/A Hot-Dip Galvanized N/A 13,800 lb N/A 45.6 lb
N/A CAD Icon (for items table) N/A 1 3/4 N/A Plain N/A 18,600 lb N/A 55.70 lb
N/A CAD Icon (for items table) N/A 1 3/4 N/A Hot-Dip Galvanized N/A 18,600 lb N/A 55.70 lb
N/A CAD Icon (for items table) N/A 2 N/A Plain N/A 24,600 lb N/A 58.2 lb
N/A CAD Icon (for items table) N/A 2 N/A Hot-Dip Galvanized N/A 24,600 lb N/A 58.2 lb
