  • 7090

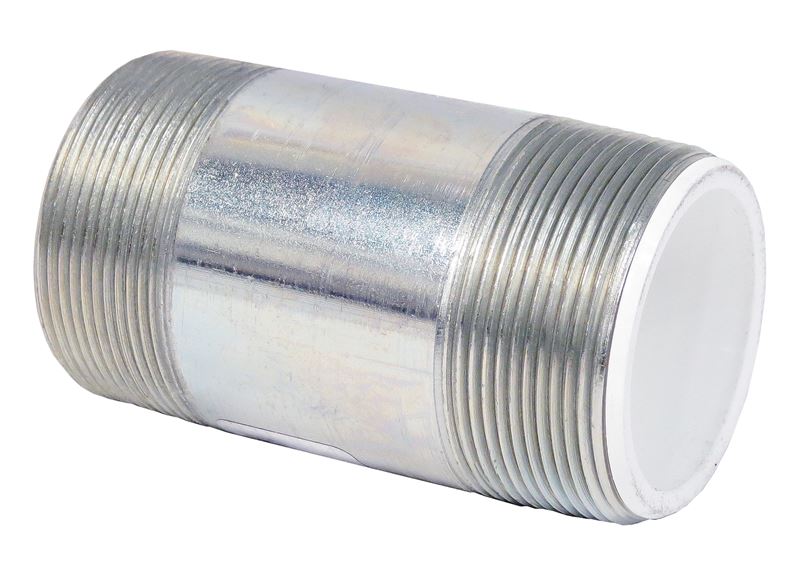

The Fig 7090 di-electric nipple inhibits the formation of galvanic corrosion between dissimilar piping metals. The di-electric nipples offer a variety of connections from thread to thread, thread to groove, or groove to groove all for IPS pipe sizes. The di-electric fittings are designed to meet ASTM F 492 for continuous use at temperatures from -40˚F to 230˚F (-40˚C to 110˚C) and pressures up to 300 psi (20.7 bar). The di-electric pipe connections will achieve a dielectric waterway in potable water and appropriate HVAC applications.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

BIM

Coatings

Weight

N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 0.20 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 0.20 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 0.30 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 0.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 0.80 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 1.00 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 1.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Zinc Plated N/A 2.00 lb
