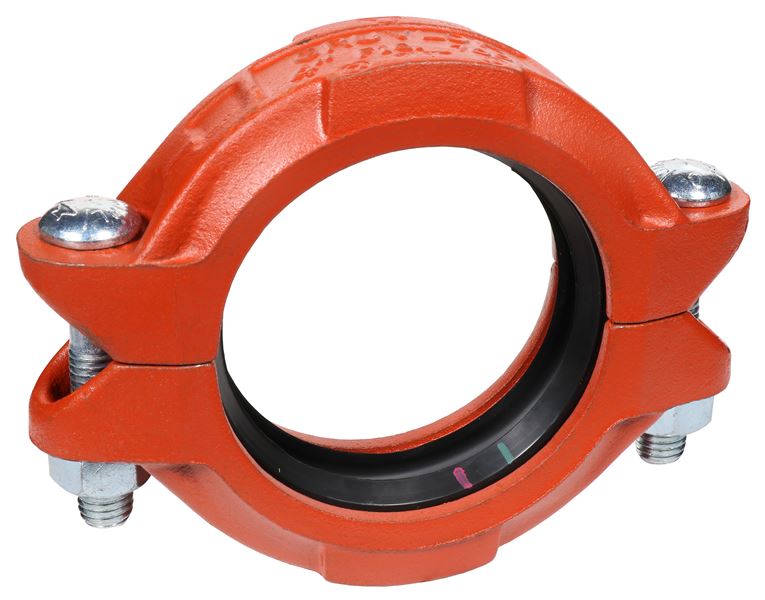

  • 7001

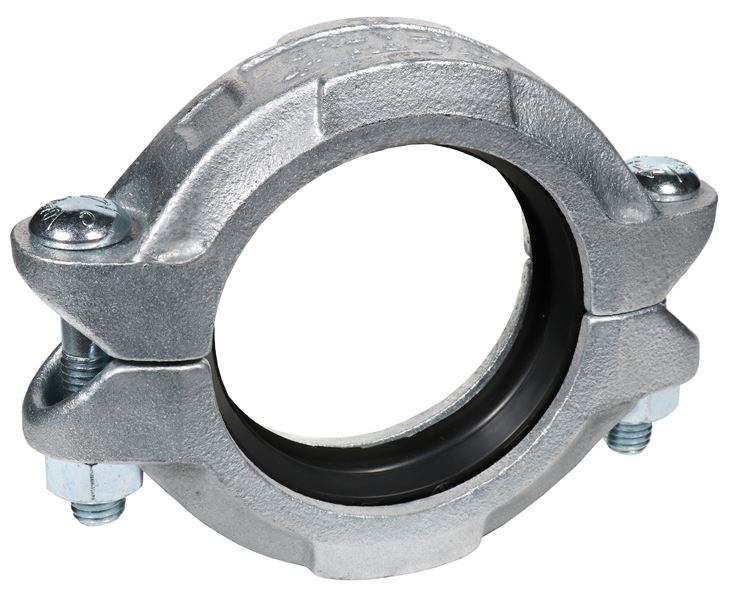

  • 7001_Galv
The Gruvlok® Fig. 7001 Coupling forms a flexible grooved end pipe joint connection with the versatility for a wide range of applications. Services include mechanical and plumbing, process piping, mining and oil field piping, and many others. The coupling design supplies optimum strength for working pressures to 1000 PSl (69 bar) without excessive casting weight. The flexible design eases pipe and equipment installation while providing the designed-in benefit of reducing pipeline noise and vibration transmission without the addition of special components. To ease coupling handling and assembly and to assure consistent quality, sizes 1" through 14" couplings have two 180° segment housings, 16" have three 120˚ segment housings, and 18" through 24" sizes have four 90° segment housings, while the 28" O.D. and 30" O.D. couplings have six 60° segment housings. The 28" O.D. and 30" O.D. are weld-ring couplings.
1 - 25 of 169 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Coatings

Gasket Material

Gasket Type

Max. Working Pressure (psi)

Item #

CAD

BIM

Coatings

Gasket Material

Weight

N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 1.30 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 1.4 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 1.5 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 3.10 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 3.7 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 4.30 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 5.1 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 6.8 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 9.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 11.8 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 21.7 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 27 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 35 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 37 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 90.0 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 1.30 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 1.4 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 1.5 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 3.10 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 3.7 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 4.30 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 6.8 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 9.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 11.8 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A Nitrile N/A 21.7 lb
