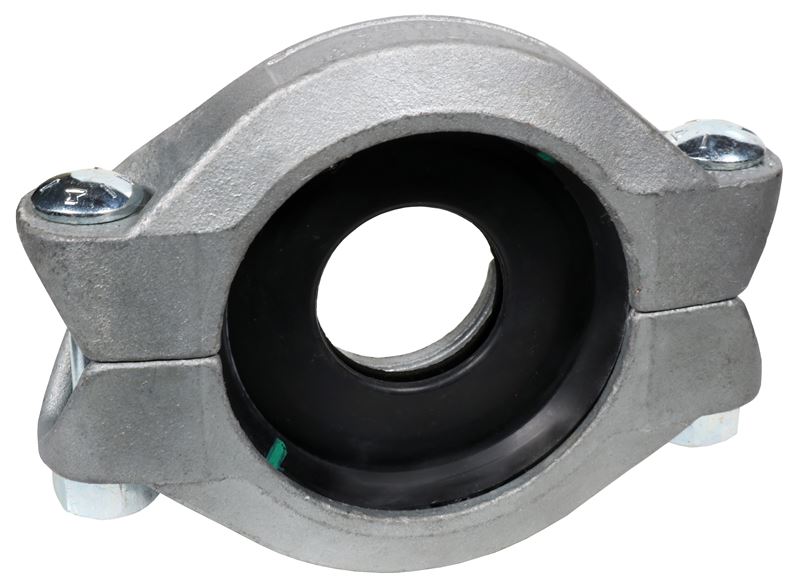

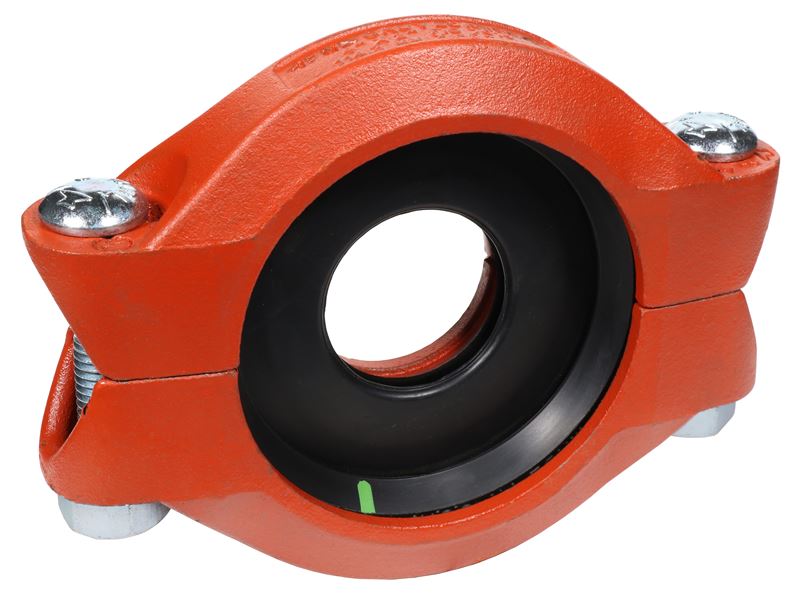

The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.
1 - 25 of 44 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Nominal Size (in)

Coatings

Gasket Material

Gasket Type

Item #

BIM

Nominal Size

Coatings

Gasket Material

Weight

N/A Revit Icon (for items table) N/A 2 1/2 x 2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 3.5 lb
N/A Revit Icon (for items table) N/A 3 x 2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 4.4 lb
N/A Revit Icon (for items table) N/A 3 x 2 1/2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 4.1 lb
N/A Revit Icon (for items table) N/A 4 x 2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 8.9 lb
N/A Revit Icon (for items table) N/A 4 x 2 1/2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 7.9 lb
N/A Revit Icon (for items table) N/A 4 x 3 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 6.7 lb
N/A Revit Icon (for items table) N/A 5 x 4 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 11.4 lb
N/A Revit Icon (for items table) N/A 6 x 4 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 13.40 lb
N/A Revit Icon (for items table) N/A 6 x 5 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 13.5 lb
N/A Revit Icon (for items table) N/A 8 x 6 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 17.7 lb
N/A Revit Icon (for items table) N/A 2 x 1 1/2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 2.00 lb
N/A Revit Icon (for items table) N/A 2 1/2 x 2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 3.5 lb
N/A Revit Icon (for items table) N/A 3 x 2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 4.4 lb
N/A Revit Icon (for items table) N/A 3 x 2 1/2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 4.1 lb
N/A Revit Icon (for items table) N/A 4 x 2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 8.9 lb
N/A Revit Icon (for items table) N/A 4 x 2 1/2 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 7.9 lb
N/A Revit Icon (for items table) N/A 4 x 3 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 6.7 lb
N/A Revit Icon (for items table) N/A 5 x 4 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 11.4 lb
N/A Revit Icon (for items table) N/A 6 x 4 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 13.40 lb
N/A Revit Icon (for items table) N/A 6 x 5 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 13.5 lb
N/A Revit Icon (for items table) N/A 8 x 6 in N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “E” EPDM (Green color code) N/A 17.7 lb
N/A Revit Icon (for items table) N/A 3 x 2 1/2 in N/A Hot Dipped Zinc Galvanized (optional) N/A Grade “T” Nitrile (Orange color code) N/A 4.1 lb
N/A Revit Icon (for items table) N/A 2 x 1 1/2 in N/A Hot Dipped Zinc Galvanized (optional) N/A Grade “E” EPDM (Green color code) N/A 2.00 lb
N/A Revit Icon (for items table) N/A 2 1/2 x 2 in N/A Hot Dipped Zinc Galvanized (optional) N/A Grade “E” EPDM (Green color code) N/A 3.5 lb
N/A Revit Icon (for items table) N/A 3 x 2 in N/A Hot Dipped Zinc Galvanized (optional) N/A Grade “E” EPDM (Green color code) N/A 4.4 lb
