  • 7011

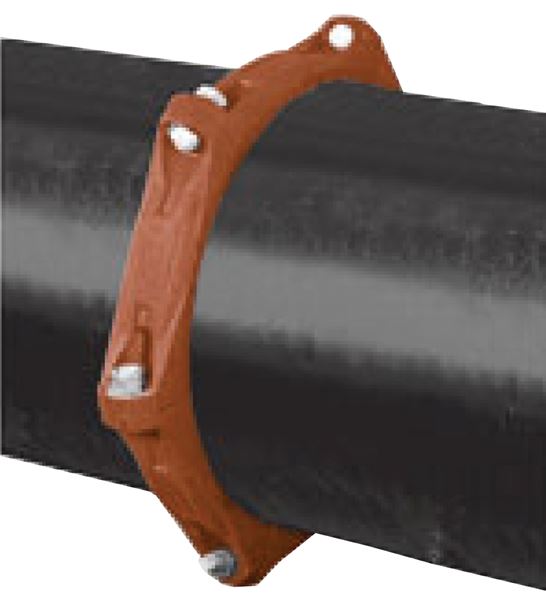

The Gruvlok® Figure 7011 Standard Coupling is a flexible coupling designed to join roll grooved or cut grooved 30" O.D. pipe for a wide range of applications, including Commercial/Industrial Construction, Mining, Process Piping and many others. This coupling’s operating temperature ranges from –40°F to 230°F (-40°C to 110°C) with the Grade E EPDM gasket and –20°F to 180°F (-29°C to 82°C) with the Grade T Nitrile gasket. The operating pressure ranges 15" of Hg. vacuum to 300 psig on standard wall steel pipe.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

BIM

Coatings

Gasket Material

Weight

N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A EPDM N/A 200 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized N/A EPDM N/A 200 lb
