  • 7050-5d

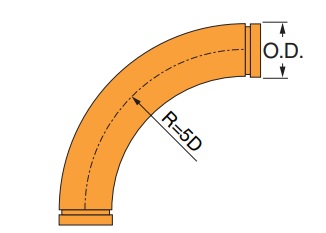

  1. 5D long radius elbows are available in sizes up to 24". Sizes 4" and below are provided with a 4" (101.6 mm) long integral tangent. Remaining sizes are provided with integral tangents with lengths equal to the nominal pipe size.
  2. Grooved or plain-end available.
  3. Material: standard wall steel pipe to ASTM A 53, Grade B. (Other materials available on request).
  4. Bends to conform to above radii.
  5. C to E tolerances: 2" through 6" ± 1/8" (3.2 mm); 8" through 16" ± 1/4" (6.4 mm); 18" through 24" + 3/8" (9.5 mm).
  6. All weights are approximate, based on calculated weight of pipe.
1 - 25 of 30 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Coatings

Item #

BIM

Coatings

Weight

N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 7.2 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 7.2 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 13.3 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 13.3 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 19.9 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 19.9 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 26.9 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 26.9 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 35.4 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 35.4 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 60.0 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 60.0 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 93.5 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 93.5 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 187.6 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 187.6 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 332.4 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 332.4 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 488.4 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 488.4 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 627.4 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 627.4 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 822.2 lb
N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A 153 N/A 822.2 lb
N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: ORANGE N/A 1043.4 lb
