  • Fig-7450

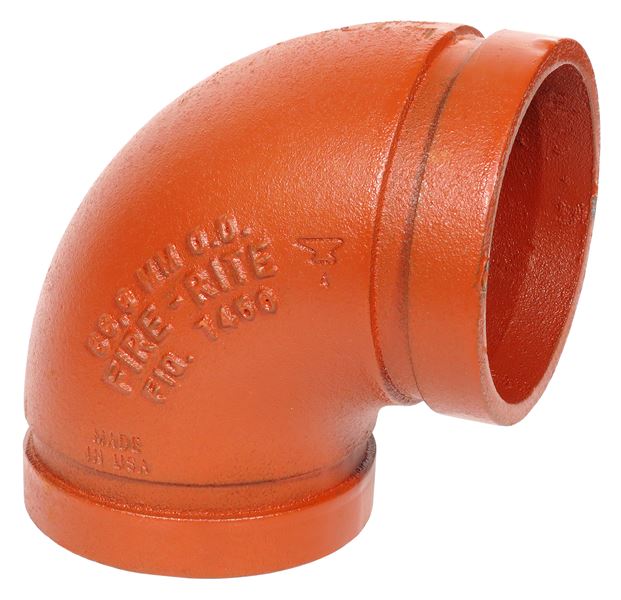

The Gruvlok® Fire-Rite™ short pattern fitting system incorporates 90° elbows and tees in 2” to 8” size range with a 300 psi pressure rating.
Fire-Rite™ fittings are painted to industry specification and are available galvanized for more corrosive environments.
CAD design increases internal diameters and provides superior flow capability.
Fire-Rite™ fittings are cast from ASTM A-536 Ductile Iron to Grade 65-45-12.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

BIM

Coatings

Weight

N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint Color: ORANGE N/A 1.7 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint Color: ORANGE N/A 2.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint Color: ORANGE N/A 3.5 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint Color: ORANGE N/A 6.5 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint Color: ORANGE N/A 14.8 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint Color: ORANGE N/A 25.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A-153 N/A 1.7 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A-153 N/A 2.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A-153 N/A 3.5 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A-153 N/A 6.5 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A-153 N/A 14.8 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Hot Dipped Zinc Galvanized conforming to ASTM A-153 N/A 25.6 lb
