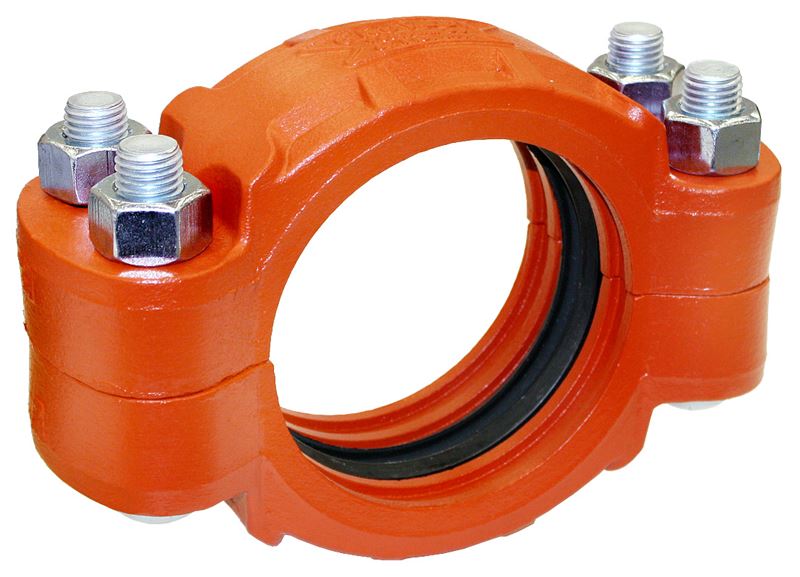

  • 7377EG Gruvlok® Double Groove Coupling
Gruvlok Fig. 7377 is a flexible coupling utilizing double groove technology designed for high pressure piping applications. Fig. 7377 is specifically designed for use in mining, oil, gas, slurry, sludge, and hydraulic systems. The maximum working pressure for each pipe schedule and size are listed in the table below. Fig. 7377 is an ideal solution for high pressure applications, exceeding Anvil’s Fig. 7004 capabilities. See page 3 for double groove piping dimensions.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

BIM

Coatings

Gasket Material

Weight

N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 42.6 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 72 lb
N/A CAD Icon (for items table) N/A Revit Icon (for items table) N/A Rust inhibiting paint – Color: Orange (standard) N/A Grade “T” Nitrile (Orange color code) N/A 98.3 lb
