  • 65_66hpn

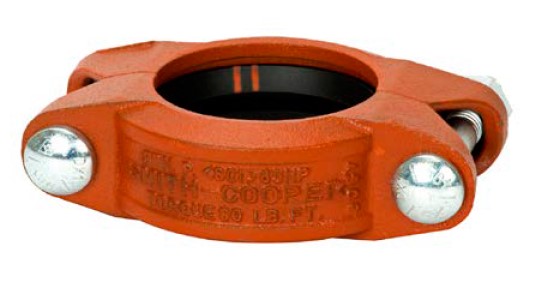

Figure 65HP extra heavy couplings are designed for high pressure service up to 1,000 psi; proof tested to 3 times maximum working pressure. As housings are tightened on the pipe, the tongue and groove design grips the pipe groove circumference providing a rigid joint connection. Bolt torques are cast into each coupling housing to simplify installation. Commonly used in oil field applications.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

BIM

Coatings

Gasket Material

Weight

N/A Revit Icon (for items table) N/A Orange Paint (rust inhibiting) N/A Nitrile N/A 3.23 lb
N/A Revit Icon (for items table) N/A Orange Paint (rust inhibiting) N/A Nitrile N/A 4.63 lb
N/A Revit Icon (for items table) N/A Orange Paint (rust inhibiting) N/A Nitrile N/A 8.26 lb
N/A Revit Icon (for items table) N/A Orange Paint (rust inhibiting) N/A Nitrile N/A 16.97 lb
N/A Revit Icon (for items table) N/A Orange Paint (rust inhibiting) N/A Nitrile N/A 25.50 lb
