  • 7401SS-HR

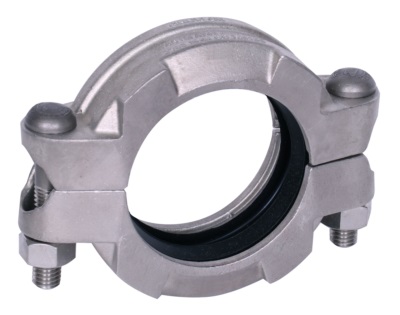

The Figure 7401SS Rigid Coupling is a Stainless Steel coupling made of ASTM A-743/A743M cast stainless steel which is the cast equivalent to 316 Stainless Steel. It is designed for installation on grooved Stainless Steel Schedules 10 and 40 pipe and grooved fittings. The stainless steel material is suitable for a variety of aggressive corrosive environments. The Figure 7401SS provides a rigid joint connection by firmly gripping along the circumference of the pipe grooves. It is capable of pressures up to 750 psi (41.4 bar) depending on pipe size and wall thickness.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

BIM

Coatings

Gasket Material

Weight

N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 32.20 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 42.20 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 2.5 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 4.30 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 5.70 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 9.20 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 19.40 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 2.00 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 2.10 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 3.20 lb
N/A Revit Icon (for items table) N/A Plain N/A EPDM N/A 8.20 lb
