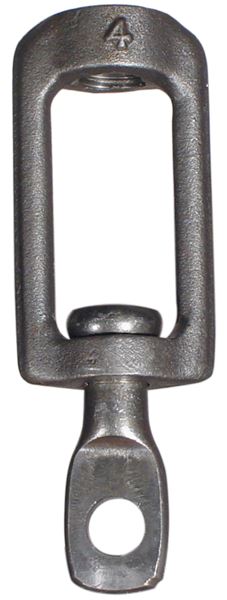

ANVIL FIG. 114 - TURNBUCKLE ADJUSTER
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

Rod Size

Finish

Max Load

Weight

N/A CAD Icon (for items table) N/A 1/4 N/A Black N/A 230 lb N/A 0.09 lb
N/A CAD Icon (for items table) N/A 3/8 N/A Black N/A 730 lb N/A 0.28 lb
N/A CAD Icon (for items table) N/A 1/2 N/A Black N/A 730 lb N/A 0.31 lb
N/A CAD Icon (for items table) N/A 5/8 N/A Black N/A 730 lb N/A 0.72 lb
N/A CAD Icon (for items table) N/A 3/4 N/A Black N/A 860 lb N/A 0.7 lb
