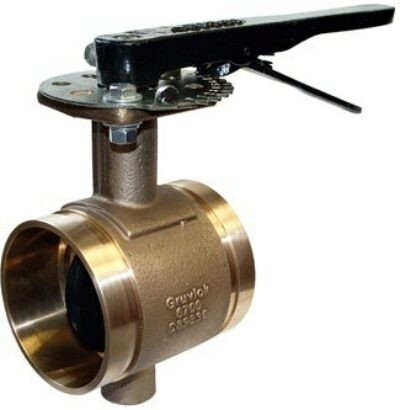

  • fig_6700
The lever handle bronze body butterfly valve is designed for use with grooved copper tubing (CTS), fittings and couplings. This valve features a 10 position lever handle, bronze body and EPDM rubber encapsulated disc. Both bronze valve body and the EPDM rubber disc obtained certification to ANSI/NSF 61 for use in potable water systems and is rated to 300 PSI.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

BIM

Valve Size

Weight

N/A Revit Icon (for items table) N/A 2 1/2 in N/A 4.0 lb
N/A Revit Icon (for items table) N/A 3 in N/A 5 lb
N/A Revit Icon (for items table) N/A 4 in N/A 8.0 lb
N/A Revit Icon (for items table) N/A 5 in N/A 14 lb
N/A Revit Icon (for items table) N/A 6 in N/A 18 lb
