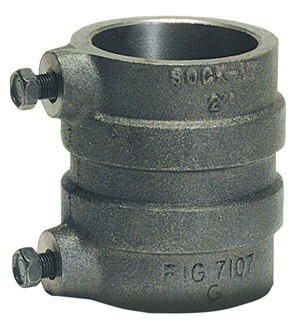

  • 9055_7107
The Gruvlok® Sock-It® Piping Method provides a quick, secure and reliable method of joining plainend steel pipe. Several Sock-It configurations are available: tees with NPT outlets, reducing run tees with NPT outlets, straight couplings, 90 elbows, straight tees and reducing elbows. Pressure energized elastomeric gaskets provide the Sock-It with a leak tight seal. Specially designed lock bolts secure the pipe in the Sock-It Fitting, providing a fast, dependable way of joining small diameter plain-end pipe. Working pressure ratings shown are for reference only and are based on schedule 40 pipe. For the latest UL/ULC Listed and FM approved pressure ratings versus pipe schedule see www.asc-es.com or contact your local ASC-ES Sales Representative.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

BIM

Housing Material

Coatings

Gasket Material

Weight

N/A Revit Icon (for items table) N/A Cast iron ASTM A 126 CLASS A N/A Plain N/A EPDM N/A 1.80 lb
N/A Revit Icon (for items table) N/A Cast iron ASTM A 126 CLASS A N/A Plain N/A EPDM N/A 3.76 lb
N/A Revit Icon (for items table) N/A Cast iron ASTM A 126 CLASS A N/A Plain N/A EPDM N/A 2.3 lb
N/A Revit Icon (for items table) N/A Cast iron ASTM A 126 CLASS A N/A Plain N/A EPDM N/A 2.63 lb
