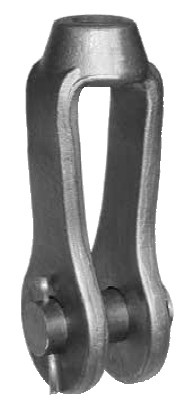

  • Fig--299---Forged-Steel-Clevis
We have Revit content for Hangers. Please select a specific size Hanger to get the corresponding detailed Revit assembly file. The RFA can be downloaded by scrolling to the Downloads panel and clicking the second link at this item level.

The Revit assembly file cannot be downloaded using the MultiCAD functionality.
1 - 25 of 35 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Rod Size

Finish

Maximum Load at 650 °F (lb)

Maximum Load at 750 °F (lb)

Item #

CAD

Rod Size

Finish

Maximum Load at 650 °F

Maximum Load at 750 °F

Weight

N/A CAD Icon (for items table) N/A 3/8 N/A Plain N/A 730 lb N/A 572 lb N/A 1.00 lb
N/A CAD Icon (for items table) N/A 1/2 N/A Plain N/A 1,350 lb N/A 1,057 lb N/A 0.9 lb
N/A CAD Icon (for items table) N/A 5/8 N/A Plain N/A 2,160 lb N/A 1,692 lb N/A 0.9 lb
N/A CAD Icon (for items table) N/A 3/4 N/A Plain N/A 3,230 lb N/A 2,530 lb N/A 3.0 lb
N/A CAD Icon (for items table) N/A 7/8 N/A Plain N/A 4,480 lb N/A 3,508 lb N/A 3.4 lb
N/A CAD Icon (for items table) N/A 1 N/A Plain N/A 5,900 lb N/A 4,620 lb N/A 5.1 lb
N/A CAD Icon (for items table) N/A 1 1/4 N/A Plain N/A 9,500 lb N/A 7,440 lb N/A 5.5 lb
N/A CAD Icon (for items table) N/A 1 1/2 N/A Plain N/A 13,800 lb N/A 10,807 lb N/A 8.5 lb
N/A CAD Icon (for items table) N/A 3/8 N/A Galvanized N/A 730 lb N/A 572 lb N/A 1.00 lb
N/A CAD Icon (for items table) N/A 1/2 N/A Galvanized N/A 1,350 lb N/A 1,057 lb N/A 0.9 lb
N/A CAD Icon (for items table) N/A 5/8 N/A Galvanized N/A 2,160 lb N/A 1,692 lb N/A 0.9 lb
N/A CAD Icon (for items table) N/A 3/4 N/A Galvanized N/A 3,230 lb N/A 2,530 lb N/A 3.0 lb
N/A CAD Icon (for items table) N/A 7/8 N/A Galvanized N/A 4,480 lb N/A 3,508 lb N/A 3.4 lb
N/A CAD Icon (for items table) N/A 1 N/A Galvanized N/A 5,900 lb N/A 4,620 lb N/A 5.1 lb
N/A CAD Icon (for items table) N/A 1 1/4 N/A Galvanized N/A 9,500 lb N/A 7,440 lb N/A 5.5 lb
N/A CAD Icon (for items table) N/A 1 1/2 N/A Galvanized N/A 13,800 lb N/A 10,807 lb N/A 8.5 lb
N/A CAD Icon (for items table) N/A 1/2 N/A Plain N/A 1,350 lb N/A 1,057 lb N/A 0.7 lb
N/A CAD Icon (for items table) N/A 5/8 N/A Plain N/A 2,160 lb N/A 1,692 lb N/A 0.7 lb
N/A CAD Icon (for items table) N/A 3/4 N/A Plain N/A 3,230 lb N/A 2,530 lb N/A 2.5 lb
N/A CAD Icon (for items table) N/A 7/8 N/A Plain N/A 4,480 lb N/A 3,508 lb N/A 2.5 lb
N/A CAD Icon (for items table) N/A 1 N/A Plain N/A 5,900 lb N/A 4,620 lb N/A 4.0 lb
N/A CAD Icon (for items table) N/A 1 1/4 N/A Plain N/A 9,500 lb N/A 7,440 lb N/A 3.80 lb
N/A CAD Icon (for items table) N/A 1 1/2 N/A Plain N/A 13,800 lb N/A 10,807 lb N/A 6 lb
N/A CAD Icon (for items table) N/A 3/8 N/A Plain N/A 730 lb N/A 572 lb N/A 0.9 lb
N/A CAD Icon (for items table) N/A 1/2 N/A Galvanized N/A 1,350 lb N/A 1,057 lb N/A 0.7 lb
