  • 184
  • Fig-184

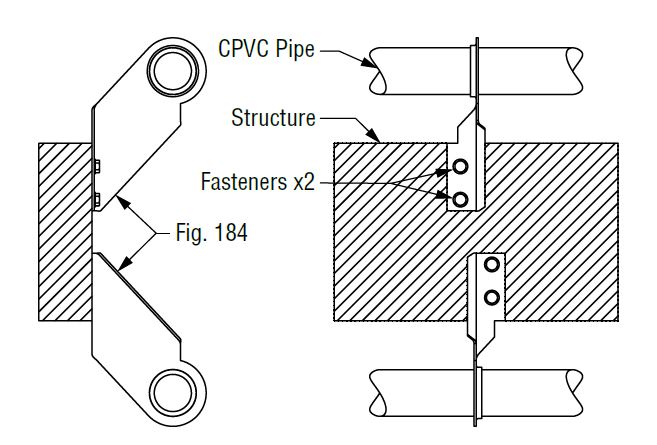

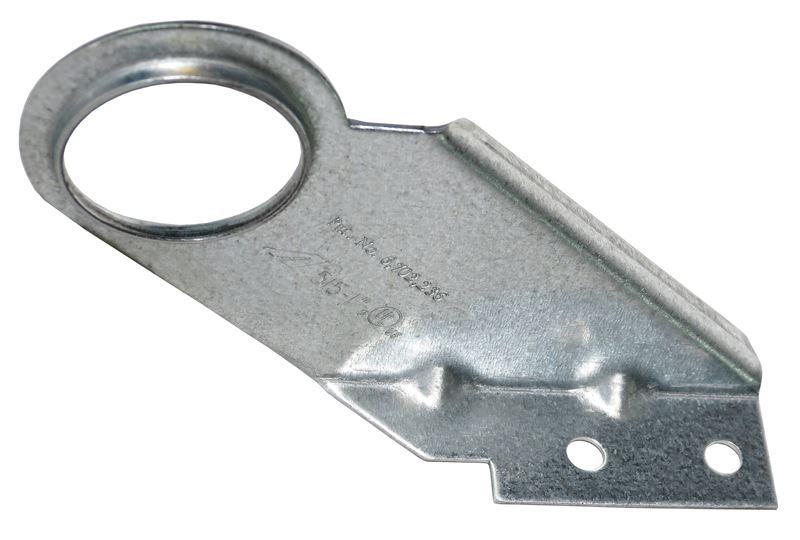

  • Hanger and surge restraint for horizontal CPVC piping when installed on the side of the supporting structure.
  • Listed with hardware provided on structural wood beams and composite wood beams (1" minimum). For wood structures with less than 1" thickness, wood blocks may be placed on the backside of the wood structure. #14x1" fastener provided must be fully engaged in the wood block.
  • May be installed with concrete, steel, and other structural members with fasteners which comply with the requirements of NFPA 13.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

CAD

Finish

CPVC Pipe Size

Max. Hanger Spacing

Weight/100 pcs

N/A CAD Icon (for items table) N/A Pre-Galvanized per ASTM A653 N/A 3/4 in N/A 5 1/2 ft N/A 17 lb
N/A CAD Icon (for items table) N/A Pre-Galvanized per ASTM A653 N/A 1 in N/A 6 ft N/A 17 lb
