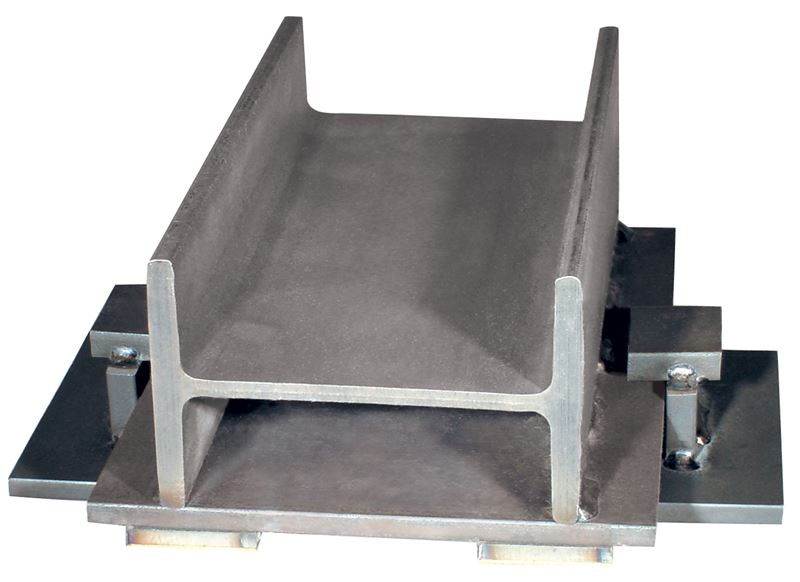

  • Fig-439A
Service: A heavy duty slide support where horizontal movement resulting from expansion and contraction takes place and where a low coefficient of friction is desired.
Maximum Load: As indicated at 70° F see page 135 for rating factor at higher temperatures.
Features:
  • No lubrication required.
  • Allows up to 4" of insulation.
  • Allows up to 10" travel standard.
  • Weld in place design.
Available Options:
  • Increased travels.
  • Increased "H" Section heights.
  • Clamps, Fig. 212 or Fig. 432.
  • Base plate with mounting holes. The bolt spacing for the bolted base plates is equal to the "W" dimention minus 1 1/2" and the "BL" dimention minus 1 1/2" for all pipe sizes and the hole diameter is 9/16" for all sizes.
Ordering: Specify figure number, type, name, finish and any other option desired.
1 - 25 of 33 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification Add to CAD Cart

Item #

CAD

Pipe Size

Max Load Down

Weight

N/A N/A 6 in N/A 12,000 lb N/A 0.01 lb
N/A N/A 8 in N/A 12,000 lb N/A 0.01 lb
N/A N/A 10 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 12 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 14 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 16 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 18 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 20 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 24 in N/A 24,000 lb N/A 0.01 lb
N/A N/A 30 in N/A 24,000 lb N/A 0.01 lb
N/A N/A 6 in N/A 12,000 lb N/A 0.01 lb
N/A N/A 8 in N/A 12,000 lb N/A 0.01 lb
N/A N/A 10 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 12 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 14 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 16 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 18 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 20 in N/A 16,000 lb N/A 0.01 lb
N/A N/A 24 in N/A 24,000 lb N/A 0.01 lb
N/A N/A 30 in N/A 24,000 lb N/A 0.01 lb
N/A CAD Icon (for items table) N/A 30 in N/A 24,000 lb N/A 22 lb
N/A CAD Icon (for items table) N/A 10 to 12 in N/A 16,000 lb N/A 12 lb
N/A CAD Icon (for items table) N/A 14 to 16 in N/A 16,000 lb N/A 13.00 lb
N/A CAD Icon (for items table) N/A 18 to 20 in N/A 16,000 lb N/A 15 lb
N/A CAD Icon (for items table) N/A 24 in N/A 24,000 lb N/A 16 lb
