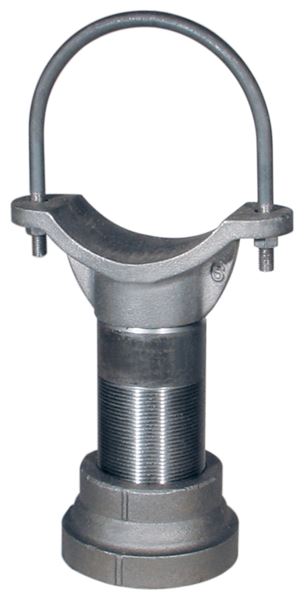

  • 265


We have Revit content for Hangers. Please select a specific size Hanger to get the corresponding detailed Revit assembly file. The RFA can be downloaded by scrolling to the Downloads panel and clicking the second link at this item level.

The Revit assembly file cannot be downloaded using the MultiCAD functionality.
1 - 25 of 32 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification Add to CAD Cart
Clear Filter

Material

Finish

Pipe Size (in)

Item #

CAD

Material

Finish

Pipe Size

Weight

N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 4 in N/A 22 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 4 in N/A 22 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 5 in N/A 23.1 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 5 in N/A 23.1 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 6 in N/A 23.9 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 6 in N/A 23.9 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 8 in N/A 32.5 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 8 in N/A 32.5 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 10 in N/A 36.9 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 10 in N/A 36.9 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 12 in N/A 42.4 lb
N/A CAD Icon (for items table) N/A Cast iron saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 12 in N/A 42.4 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 14 in N/A 39.2 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 14 in N/A 39.2 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 16 in N/A 42.20 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 16 in N/A 42.20 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 18 in N/A 60.0 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 18 in N/A 60.0 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 20 in N/A 63.0 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 20 in N/A 63.0 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 22 in N/A 66.0 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 22 in N/A 66.0 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 24 in N/A 72 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Zinc Plated N/A 24 in N/A 72 lb
N/A CAD Icon (for items table) N/A Carbon steel saddle, steel yoke and nuts, steel locknut nipple and special cast iron reducer N/A Plain N/A 26 in N/A 75 lb
